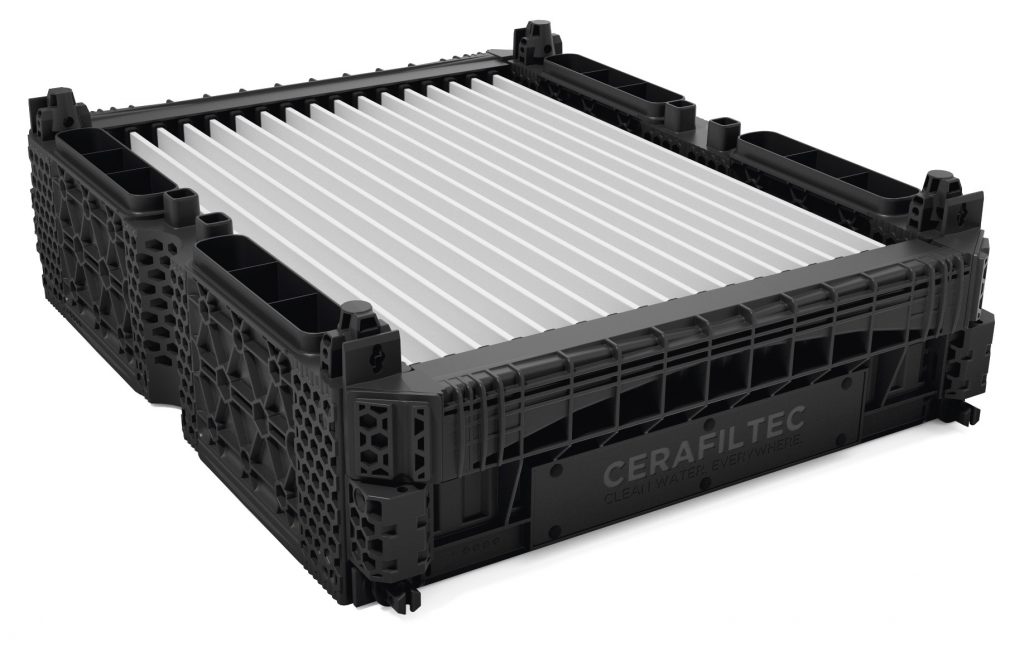

MODULE 2.8 T BLACK

For high suspended solids and sludge thickening applications

DESCRIPTION

  • Filtration module with ceramic flat membranes suitable for submerged applications
  • Multi ceramic plate configuration with exchangeable single ceramic plates
  • Internal filtered water piping
  • Module housing fully made of glass fiber reinforced resin – free of any steel parts
  • Out-to-in filtration and in-to-out backwash

SPECIFICATIONS
Product codeCFT-0000-SMTEC0-1016
CFT-0000-BMTEC0-1016
CFT-0000-SMTEC0-1019
CFT-0000-BMTEC0-1019
CFT-0000-SMTEC0-2019
CFT-0000-BMTEC0-2019
CFT-0000-BMTEC0-2022
CFT-0000-SMTEC0-2022

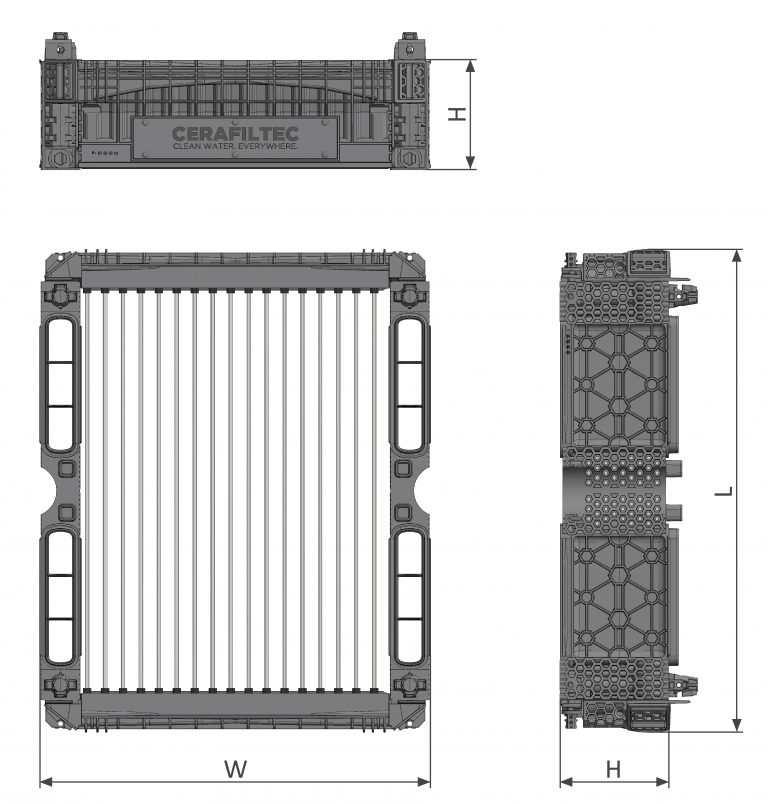

Dimension L x W xH710 x 576 x 160 mm / 28.0 x 22.7 x 6.3 in
Dry weight~ 21 kg / 46.3 lbs
Module housing materialNORYL™ resin 30 % glass fiber reinforced blend of PPE/PS
Membrane materialAlumina / SiC
Pore size0.1 - 0.5 µm / 0.3 - 2.0 µm
No. of single ceramic plates16
Avg. distance between ceramic plates20 mm / 0.79 in
Filter active area2.8 m² / 30.1 ft²
Max. negative (suction) pressure-0.7 bar / -10.2 psi
Max. positive (backwash) pressure1.2 bar / 17.4 psi
Max. operating temperature40 °C / 104 °F
