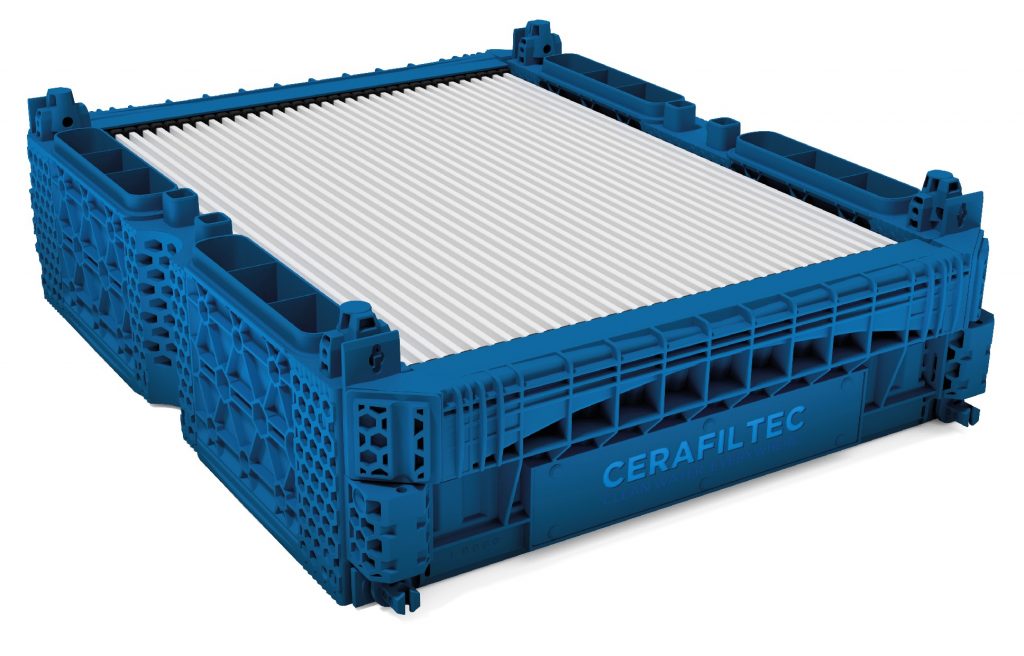

MODULE 6.0 S BLUE 61
For drinking water applications with NSF 61 certification
DESCRIPTION
- Filtration module with ceramic flat membranes suitable for submerged applications
- Multi ceramic plate configuration with exchangeable single ceramic plates
- Internal filtered water piping
- Module housing fully made of glass fiber reinforced resin – free of any steel parts
- Out-to-in filtration and in-to-out backwash
CERTIFICATION
| Product code | CFT-0000-SMSEC6-1016 CFT-0000-BMSEC6-1016 CFT-0000-SMSEC6-1019 CFT-0000-BMSEC6-1019 CFT-0000-SMSEC6-2019 CFT-0000-BMSEC6-2019 CFT-0000-BMSEC6-2022 CFT-0000-SMSEC6-2022 |
| Max. operating temperature | 60 °C / 140 °F (D. HOT) |
| Production facility | Germany |
SPECIFICATIONS

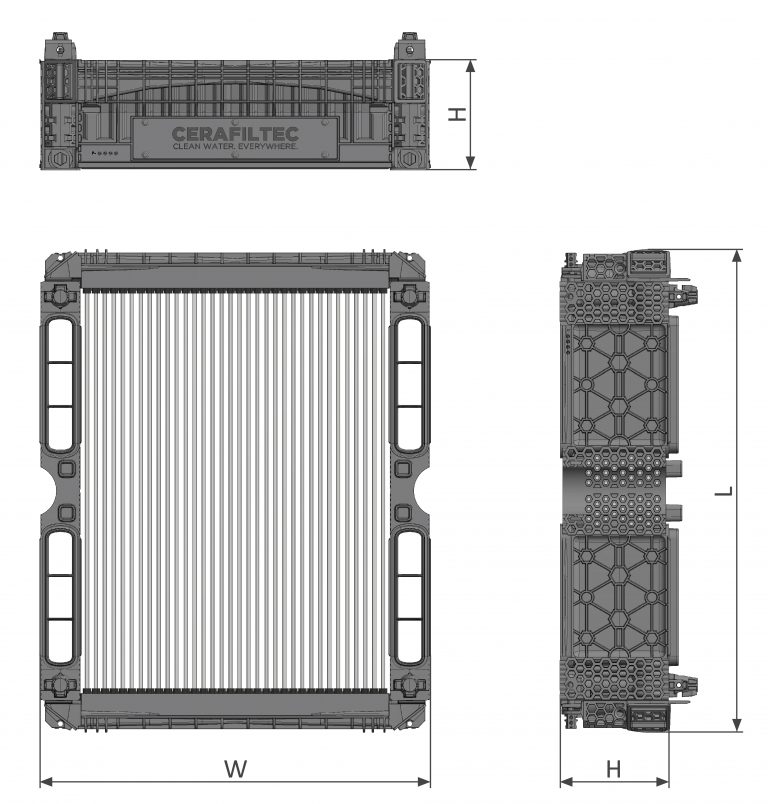

| Dimension L x W xH | 710 x 576 x 160 mm / 28.0 x 22.7 x 6.3 in |
| Dry weight | ~ 37 kg / 81.6 lbs |
| Module housing material | NORYL™ resin 30 % glass fiber reinforced blend of PPE/PS |
| Membrane material | Alumina / SiC |
| Pore size | 0.1 - 0.3 µm / 0.3 - 2.0 µm |
| No. of single ceramic plates | 34 |
| Avg. distance between ceramic plates | 6.7 mm / 0.26 in |
| Filter active area | 6.0 m² / 64.6 ft² |
| Max. negative (suction) pressure | -0.7 bar / -10.2 psi |
| Max. positive (backwash) pressure | 1.2 bar / 17.4 psi |
